Pressure, Humidity, and Temperature Transmitter PTU300

One instrument measures three parameters simultaneously: barometric pressure, humidity, and temperature.

    1 INSTRUMENT, 3 PARAMETERS

    Unique combination of a meteorological grade barometer combined with humidity and temperature measurement in a single, industrial-grade device.

    The instrument also has four different humidity probe options for various measurement needs. Reliable Vaisala HUMICAP® and BAROCAP® sensor technologies make it suitable for demanding meteorology applications and maritime conditions.

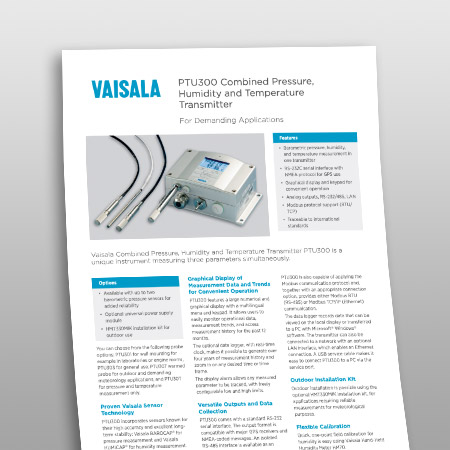

    DOWNLOAD BROCHURE

    PROVEN SENSOR TECHNOLOGY

    PTU300 incorporates sensors known for their high accuracy and excellent long-term stability: Vaisala BAROCAP® for pressure measurement and Vaisala HUMICAP® for humidity measurement. The temperature sensor is a platinum RTD sensor.

    DOWNLOAD BROCHURE

    LARGE GRAPHICAL DISPLAY

    PTU300 features a large numerical and graphical display with a multilingual menu and keypad. It allows users to easily monitor operational data, measurement trends, and access measurement history for the past 12 months.

    The optional data logger, with real-time clock, makes it possible to generate over four years of measurement history and zoom in on any desired time or time frame.

    The display alarm allows any measured parameter to be tracked, with freely configurable low and high limits.

    DOWNLOAD BROCHURE

    VERSATILE OUPUTS

    PTU300 comes with a standard RS-232 serial interface. The output format is compatible with major GPS receivers and NMEA-coded messages. An isolated RS-485 interface is available as an option. PTU300 is also capable of applying the Modbus communication protocol and, together with an appropriate connection option, provides either Modbus RTU (RS-485) or Modbus TCP/IP (Ethernet) communication.

    The data logger records data that can be viewed on the local display or transferred to a PC with Microsoft Windows software. The transmitter can also be connected to a network with an optional LAN interface, which enables an Ethernet connection. A USB service cable makes it easy to connect PTU300 to a PC via the service port.

    DOWNLOAD BROCHURE

    OUTDOOR INSTALLATION KIT

    Outdoor installation is possible using the optional HMT330MIK installation kit, for applications requiring reliable measurements for meteorological purposes.

    DOWNLOAD BROCHURE

    FLEXIBLE CALIBRATION

    Quick, one-point field calibration for humidity is easy using Vaisala Hand-Held Humidity Meter HM70. With Vaisala Barometric Pressure Transfer Standard PTB330TS, including optional humidity and temperature probe, field check, and calibration can be performed for all three parameters.

    DOWNLOAD BROCHURE
    Vaisala team collaborating in office

    Explore Our Probe Options

    Vaisala offers probe options to fit various applications including wall mounting; warmed probe for demanding outdoor and meteorology applications; and one for pressure and temperature measurement only.
