Vaisala’s GLD360 detects Enveloped Eyewall Lightning Signature in Cyclone Harold

Cyclone Harold over Vanuatu
Chris Vagasky
Meteorologist and Lightning Applications Manager
Weather & Environment

As Tropical Cyclone Harold approached the island nation of Vanuatu in the early morning hours of April 6, Vaisala Global Lightning Dataset GLD360 detected the Enveloped Eyewall Lightning (EEL) Signature. The EEL Signature is a phenomenon that was defined by Vaisala researchers and refers to active lightning that completely wraps around the eyewall of very strong tropical cyclones. Cyclone Harold made landfall with sustained winds of at least 125 knots shortly after the EEL Signature appeared. The EEL Signature as detected by GLD360 can be seen in the map below.

Cyclone Harold

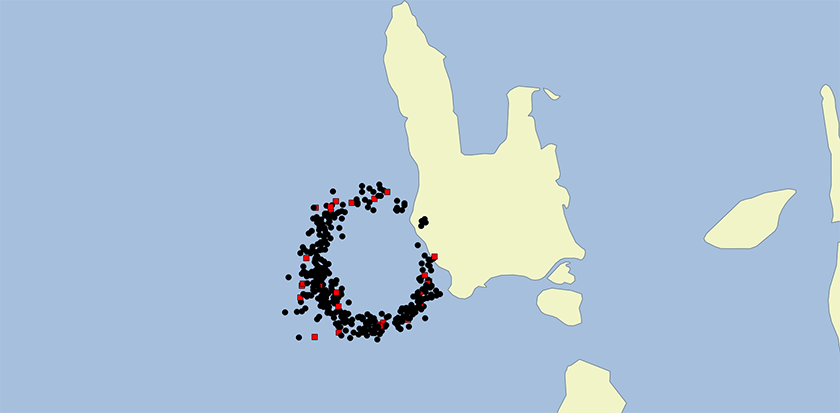

Figure 1: The eyewall of Cyclone Harold approaching Espiritu Santo, Vanuatu, at 2155 UTC April 5.
Cloud-to-ground (red squares) and in-cloud (black circles) lightning from the previous 15 minutes shown.


Around 100 tropical cyclones develop over the world’s oceans each year, with about 20 of them reaching peak wind speeds in excess of 113 knots. Fewer than half of these tropical cyclones then exhibit the EEL Signature, making it a very rare phenomenon. Research is ongoing to understand what the EEL Signature, and lightning in tropical cyclones in general, may mean for tropical cyclone forecasting and analysis.

The study of lightning in tropical cyclones is a relatively new science, thanks to the development of long range lightning detection systems like GLD360. GLD360’s unique method of lightning detection offers unparalleled performance around the world, allowing meteorologists to monitor lightning in remote regions of the world in unprecedented detail. This data quality gives forecasters an additional tool for issuing high quality, life-saving alerts.

About Tropical Cyclone Harold

Tropical Cyclone Harold formed between the Solomon Islands and Papua New Guinea last Wednesday April 1. Flooding and downed trees were reported in the Solomon Islands. Harold then made landfall on the island of Espiritu Santo in Vanuatu, and will move slowly through the South Pacific archipelago country with strong winds, heavy rain, and storm surge before tracking near Fiji later this week. While moving over northern parts of Vanuatu, Harold had maximum sustained winds equivalent to a Category 4 hurricane on the Saffir-Simpson Hurricane Wind Scale.
