CO₂ 측정부 GMP252

농업, 냉장, 까다로운 HVAC 및 식물 원예 제조업체의 ppm 레벨 측정용

Vaisala (바이살라) CARBOCAP® 이산화탄소 측정부 GMP252는 지능형, 독립형 ppm 레벨 측정부입니다. 농업, 냉장온실, 까다로운 HVAC 응용 분야 및 식물 성장 챔버 제조업체에서 CO2를 측정하기 위한 것입니다. 안정적이고 정확한 ppm 레벨 CO2 측정이 필요한 혹독하고 습한 CO2 측정 환경에 적합합니다. 작동 온도 범위는 -40~+60°C이고 측정 범위는 0~10,000 ppm CO2이며, 최대 30,000ppm CO2에서도 약간의 정확도 저하와 함께 측정이 가능합니다.

GMP252는 동적으로 실외 CO2 레벨을 측정하기 위해 Vaisala 차광 쉴드 DTR250 내부에 배치할 수도 있습니다.

Indigo 제품군 중 하나로

GMP252 측정부는 Indigo 제품군 중 하나로 디스플레이 또는 릴레이 등의 기능을 확장하기 위하여 Indigo500 및 Indigo200 시리즈 송신기, 그리고 무료 Insight PC 소프트웨어와 연결이 가능합니다. GMP252는 무료 Insight PC 소프트웨어와도 함께 사용할 수 있습니다.

현장 측정용으로 휴대용 표시기 Indigo80은 이상적인 선택입니다.

GMP252가 대체하는 단종된 제품: GMM222 및 GMT222. GMP222 측정부용 예비품 및 액세서리는 계속 사용이 가능하며 Vaisala 온라인 스토어에서 구입할 수 있습니다.

Features

  • 측정 범위 0~10,000 ppm CO2
  • 저하된 정확도로 최대 30,000ppm CO₂까지 측정할 수 있습니다.
  • 아날로그(V, mA) 및 디지털 출력(Vaisala 프로토콜 또는Modbus이 있는 RS485)이 있는 지능형, 독립형 측정부
  • 2세대 독점 CARBOCAP® 기술을 통한 뛰어난 장기 안정성
  • 넓은 작동 온도 범위 -40~+60°C
  •  IP65 등급 하우징
  • 전체 온도 및 압력 보상
  • CO₂ 보상을 위한 통합 온도 측정
  • 백그라운드 가스 보상: O₂ 및 습도
  • 응결 방지를 위한 센서 헤드 가열

주요 이점

간편한 사용 및 세척

일체형 측정부인 GMP252은 쉽고 빠르게 설치할 수 있습니다.
측정부는 먼지와 H2O2와 알콜성 세척제 등 대부분의 화학 물질에 강합니다.
부드러운 측정부 표면은 쉽게 세척할 수 있습니다.

안정성과 정확성

작동 온도 범위가 넓은 GMP252은 여러 응용 분야에 적합합니다.
측정부는 여러 조건에서도 정확하고 안정적인 측정을 제공합니다.

제품 리소스

Blog

Indigo500 series dual-probe support

Learn about the benefits of using two probes measuring either the same parameter or two different ones.

Read more

Blog

What is a smart measurement probe and what makes it special?

Environmental measurement devices are also becoming smart. Unlike in the past when measurement probes could not be used on their own, the new wave of smart measurement probes can operate independently without additional transmitters.

Learn more

Blog

Accurate CO2 measurements in the food and beverage industry

Whatever the end product, process, or need, the goals are similar in almost all applications: a CO2 measurement that accurately reflects the environment and meets the application requirements.

Learn more

Customer case

Why Damatex chose Vaisala sensors

In pursuit of higher profits and yields and lower operational costs, many modern greenhouses are turning to climate control companies with sophisticated networks of interconnected sensors and devices to provide real-time, autonomous environmental monitoring.

Read more

Customer case

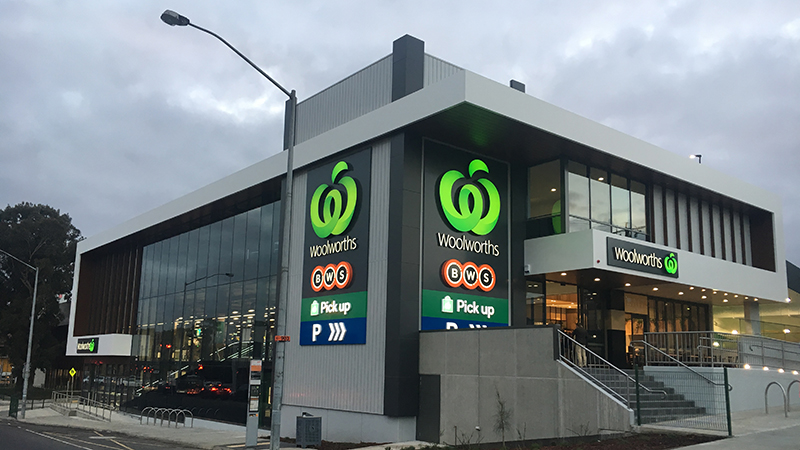

Vaisala probes facilitate rollout of environmentally friendly refrigeration

Supermarkets all over Australia and New Zealand are benefiting from advanced carbon dioxide monitors as new natural refrigeration systems are installed in the fight against climate change. Woolworths, and its cold chain partner Emerson, therefore needed an accurate, reliable CO2 monitor that could fulfill this vital role as the Group expands the use of natural refrigerants in its stores.

Learn more

Customer case

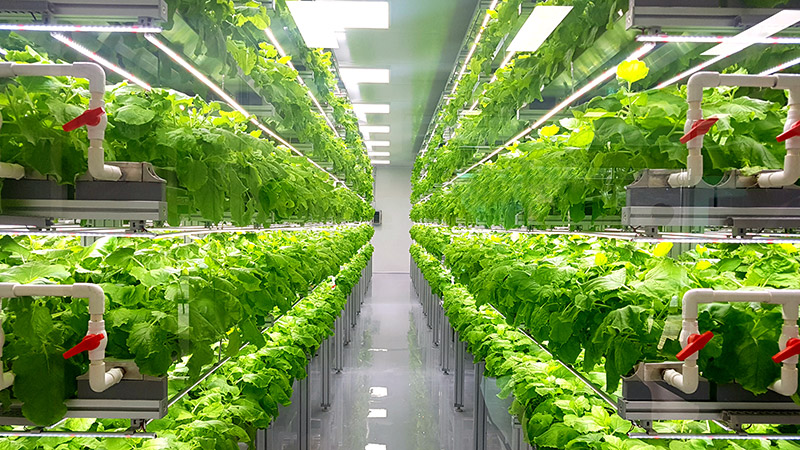

Elevated vertical farming using Vaisala humidity and CO2 measurements
